11 Motif clustering

11.1 Motif sequence clustering

NBBC allows users to perform clustering on any combination of motif-associated features, including length, guanine content (%G), and adenine content (%A). This capability enables users to conduct a more focused search for motifs with specific characteristics of interest within the context of their research.

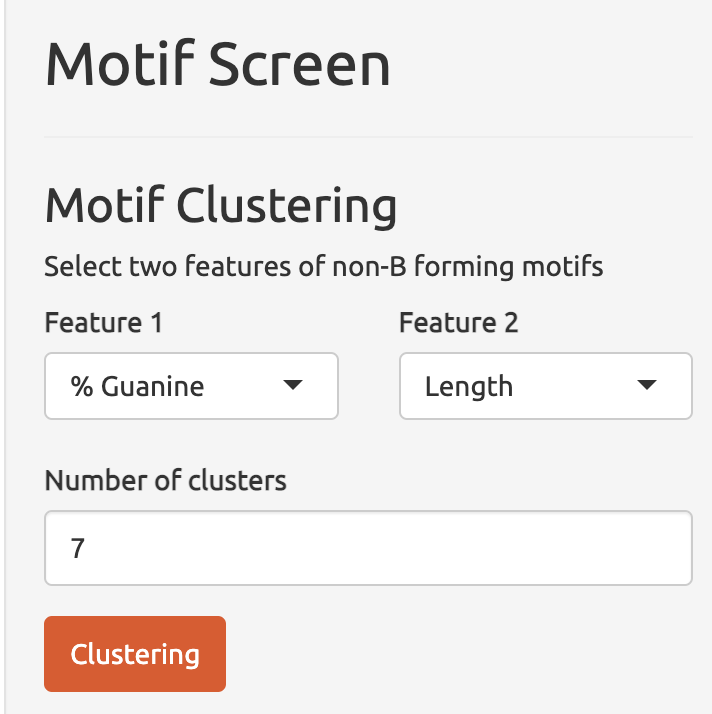

The interface:

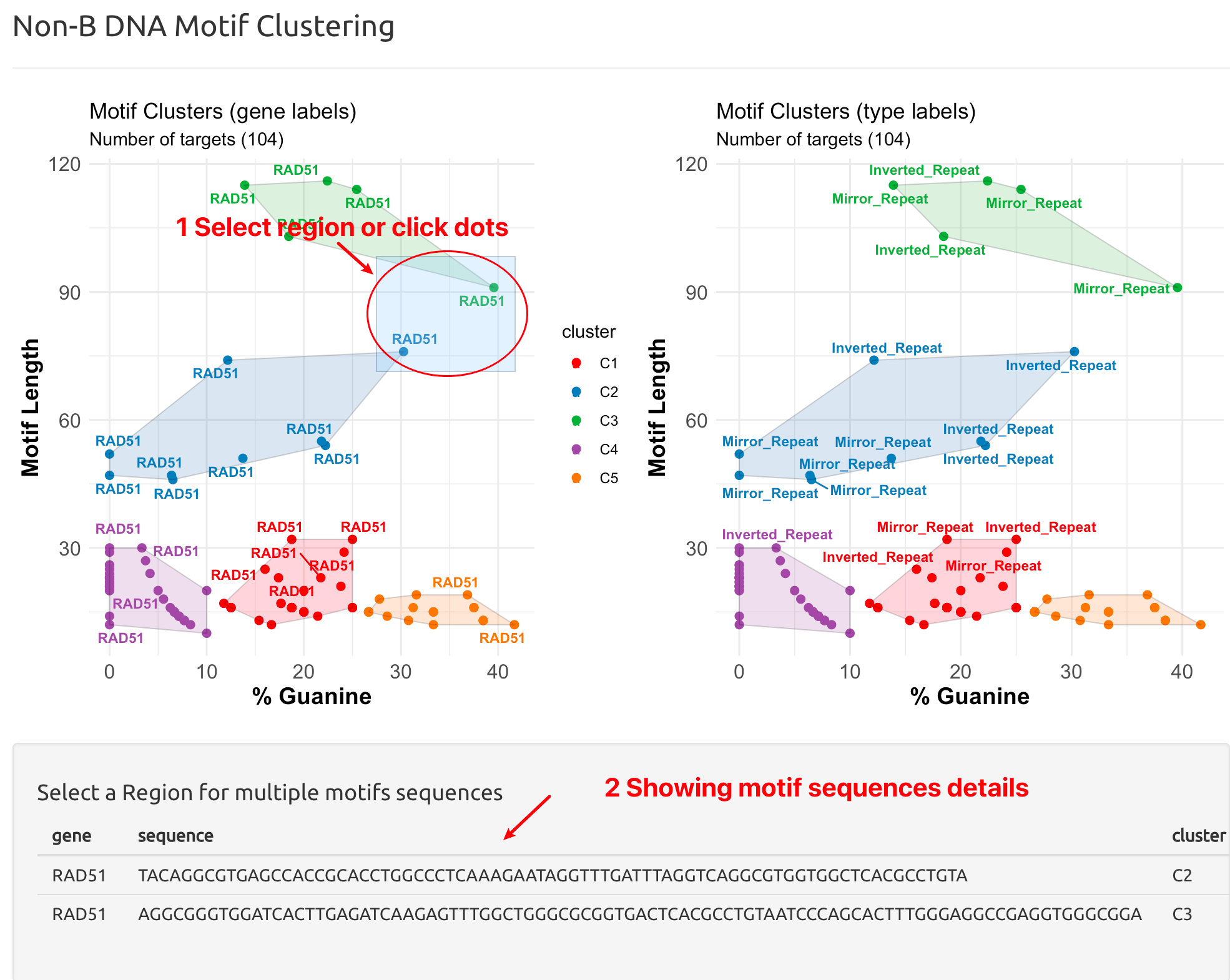

The results:

The output of the Motif Screen module within NBBC includes two figures, where motifs are represented by individual dots. The motifs are color-coded based on their respective clusters, and each motif is labeled by its corresponding gene or motif name, providing users with relevant information.

---

11.2 Interaction plots

The interaction plot feature within NBBC allows users to select motifs on the graph and view their details. Users can simply click on a motif of interest on the graph, and the app will output the specific details of that motif. This feature provides users with a more interactive and efficient means of exploring and analyzing non-B motifs.
